A class representing a Gaussian likelihood with block-diagonal covariance matrix. More...

#include <GaussianLikelihoodBlockDiagonalCovariance.h>

Inheritance diagram for QUESO::GaussianLikelihoodBlockDiagonalCovariance< V, M >:

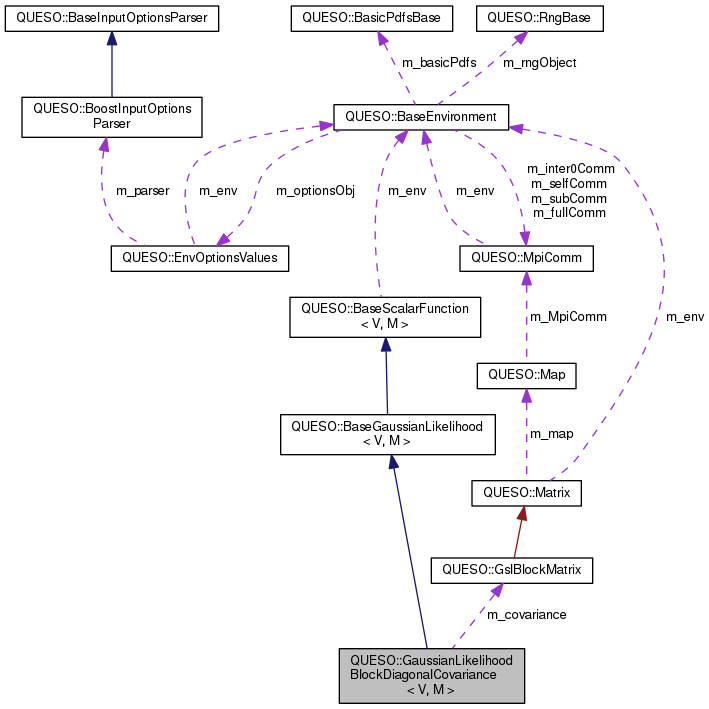

Collaboration diagram for QUESO::GaussianLikelihoodBlockDiagonalCovariance< V, M >:

Public Member Functions
double &	blockCoefficient (unsigned int i)
	Get (non-const) multiplicative coefficient for block `i`. More...

const double &	getBlockCoefficient (unsigned int i) const
	Get (const) multiplicative coefficient for block `i`. More...

virtual double	actualValue (const V &domainVector, const V domainDirection, V gradVector, M hessianMatrix, V hessianEffect) const
	Actual value of the scalar function. More...

virtual double	lnValue (const V &domainVector, const V domainDirection, V gradVector, M hessianMatrix, V hessianEffect) const
	Logarithm of the value of the scalar function. More...

Constructor/Destructor methods.
	GaussianLikelihoodBlockDiagonalCovariance (const char *prefix, const VectorSet< V, M > &domainSet, const V &observations, const GslBlockMatrix &covariance)
	Default constructor. More...

virtual	~GaussianLikelihoodBlockDiagonalCovariance ()
	Destructor. More...

Public Member Functions inherited from QUESO::BaseGaussianLikelihood< V, M >
virtual void	evaluateModel (const V &domainVector, const V domainDirection, V &modelOutput, V gradVector, M hessianMatrix, V hessianEffect) const =0
	Evaluates the user's model at the point `domainVector`. More...

	BaseGaussianLikelihood (const char *prefix, const VectorSet< V, M > &domainSet, const V &observations)
	Default constructor. More...

virtual	~BaseGaussianLikelihood ()
	Destructor. More...

Public Member Functions inherited from QUESO::BaseScalarFunction< V, M >
	BaseScalarFunction (const char *prefix, const VectorSet< V, M > &domainSet)
	Default constructor. More...

virtual	~BaseScalarFunction ()
	Destructor. More...

const VectorSet< V, M > &	domainSet () const
	Access to the protected attribute `m_domainSet:` domain set of the scalar function. More...

Private Attributes
std::vector< double >	m_covarianceCoefficients

const GslBlockMatrix &	m_covariance

Additional Inherited Members
Protected Attributes inherited from QUESO::BaseGaussianLikelihood< V, M >
const V &	m_observations

Protected Attributes inherited from QUESO::BaseScalarFunction< V, M >
const BaseEnvironment &	m_env

std::string	m_prefix

const VectorSet< V, M > &	m_domainSet
	Domain set of the scalar function. More...

Detailed Description

template<class V = GslVector, class M = GslMatrix>
class QUESO::GaussianLikelihoodBlockDiagonalCovariance< V, M >

A class representing a Gaussian likelihood with block-diagonal covariance matrix.

Definition at line 45 of file GaussianLikelihoodBlockDiagonalCovariance.h.

Constructor & Destructor Documentation

template<class V , class M >

QUESO::GaussianLikelihoodBlockDiagonalCovariance< V, M >::GaussianLikelihoodBlockDiagonalCovariance	(	const char *	prefix,
		const VectorSet< V, M > &	domainSet,
		const V &	observations,
		const GslBlockMatrix &	covariance
	)

Default constructor.

Instantiates a Gaussian likelihood function, given a prefix, its domain, a vector of observations and a block diagonal covariance matrix. The diagonal covariance matrix is of type GslBlockMatrix. Each block in the block diagonal matrix is an object of type GslMatrix.

Furthermore, each block comes with a multiplicative coefficient which defaults to 1.0.

Definition at line 35 of file GaussianLikelihoodBlockDiagonalCovariance.C.

References QUESO::GslBlockMatrix::getBlock(), QUESO::GaussianLikelihoodBlockDiagonalCovariance< V, M >::m_covariance, QUESO::GslBlockMatrix::numBlocks(), QUESO::GslMatrix::numRowsLocal(), and queso_error_msg.

   : BaseGaussianLikelihood<V, M>(prefix, domainSet, observations),
     m_covarianceCoefficients(covariance.numBlocks(), 1.0),
     m_covariance(covariance)
 {
   unsigned int totalDim = 0;

   for (unsigned int i = 0; i < this->m_covariance.numBlocks(); i++) {
     totalDim += this->m_covariance.getBlock(i).numRowsLocal();
   }

   if (totalDim != observations.sizeLocal()) {
     queso_error_msg("Covariance matrix not same dimension as observation vector");
   }
 }

template<class V , class M >

QUESO::GaussianLikelihoodBlockDiagonalCovariance< V, M >::~GaussianLikelihoodBlockDiagonalCovariance ( )

virtual

Destructor.

Definition at line 54 of file GaussianLikelihoodBlockDiagonalCovariance.C.

55 {

56 }

Member Function Documentation

template<class V , class M >

double QUESO::GaussianLikelihoodBlockDiagonalCovariance< V, M >::actualValue	(	const V &	domainVector,
		const V *	domainDirection,
		V *	gradVector,
		M *	hessianMatrix,
		V *	hessianEffect
	)		const

virtual

Actual value of the scalar function.

Implements QUESO::BaseScalarFunction< V, M >.

Definition at line 76 of file GaussianLikelihoodBlockDiagonalCovariance.C.

 {
   return std::exp(this->lnValue(domainVector, domainDirection, gradVector,
         hessianMatrix, hessianEffect));
 }

template<class V , class M >

double & QUESO::GaussianLikelihoodBlockDiagonalCovariance< V, M >::blockCoefficient ( unsigned int i )

Get (non-const) multiplicative coefficient for block i.

Definition at line 60 of file GaussianLikelihoodBlockDiagonalCovariance.C.

 {
   return this->m_covarianceCoefficients[i];
 }

template<class V , class M >

const double & QUESO::GaussianLikelihoodBlockDiagonalCovariance< V, M >::getBlockCoefficient ( unsigned int i ) const

Get (const) multiplicative coefficient for block i.

Definition at line 68 of file GaussianLikelihoodBlockDiagonalCovariance.C.

 {
   return this->m_covarianceCoefficients[i];
 }

template<class V , class M >

double QUESO::GaussianLikelihoodBlockDiagonalCovariance< V, M >::lnValue	(	const V &	domainVector,
		const V *	domainDirection,
		V *	gradVector,
		M *	hessianMatrix,
		V *	hessianEffect
	)		const

virtual

Logarithm of the value of the scalar function.

Implements QUESO::BaseScalarFunction< V, M >.

Definition at line 86 of file GaussianLikelihoodBlockDiagonalCovariance.C.

 {
   V modelOutput(this->m_observations, 0, 0);  // At least it's not a copy
   V weightedMisfit(this->m_observations, 0, 0);  // At least it's not a copy

   this->evaluateModel(domainVector, domainDirection, modelOutput, gradVector,
       hessianMatrix, hessianEffect);

   // Compute misfit G(x) - y
   modelOutput -= this->m_observations;

   // Solve \Sigma u = G(x) - y for u
   this->m_covariance.invertMultiply(modelOutput, weightedMisfit);

   // Deal with the multiplicative coefficients for each of the blocks
   unsigned int offset = 0;

   // For each block...
   for (unsigned int i = 0; i < this->m_covariance.numBlocks(); i++) {
     // ...divide the appropriate parts of the solution by the coefficient
     unsigned int blockDim = this->m_covariance.getBlock(i).numRowsLocal();
     for (unsigned int j = 0; j < blockDim; j++) {
       // coefficient is a variance, so we divide by it
       modelOutput[offset+j] /= this->m_covarianceCoefficients[i];
     }
     offset += blockDim;
   }

   // Compute (G(x) - y)^T \Sigma^{-1} (G(x) - y)
   modelOutput *= weightedMisfit;

   double norm2_squared = modelOutput.sumOfComponents();  // This is square of 2-norm

   return -0.5 * norm2_squared;
 }
