QUESO::VectorSet< V, M > Class Template Referenceabstract

A templated class for handling sets. More...

#include <VectorSet.h>

Inheritance diagram for QUESO::VectorSet< V, M >:
Inheritance graph
[legend]

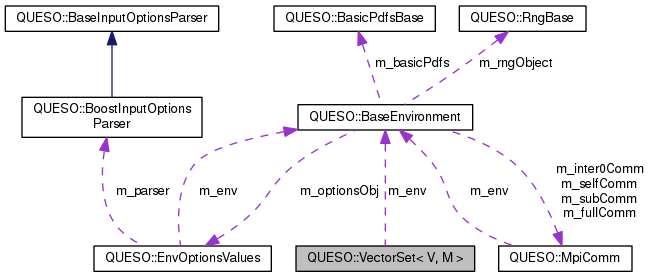

Collaboration diagram for QUESO::VectorSet< V, M >:
Collaboration graph
[legend]

Public Member Functions

Constructor/Destructor methods.
 VectorSet (const BaseEnvironment &env, const char *prefix, double volume)
 Shaped constructor. More...

virtual ~VectorSet ()
 Virtual destructor. More...

Environment methods
const BaseEnvironment & env () const
 Environment. Access to private attribute m_env. More...

const std::string & prefix () const
 Access to private attribute m_prefix. More...

Mathematical methods.
double volume () const
 Set volume; access to private attribute m_volume. More...

virtual const VectorSpace< V, M > & vectorSpace () const =0
 Vector space to which this set belongs to. See template specialization. More...

virtual bool contains (const V &vec) const =0
 Checks whether a set contains vector vec. See template specialization. More...

virtual void centroid (V &vec) const =0
 Returns the set centroid in the vector vec. See template specialization. More...

virtual void moments (M &mat) const =0
 Returns the set moments of inertia in the matrix mat. See template specialization. More...


Protected Attributes

const BaseEnvironment & m_env

std::string m_prefix

double m_volume


Private Member Functions

 VectorSet ()
 Default Constructor. More...


I/O methods.

virtual void print (std::ostream &os) const
 Prints nothing. More...

std::ostream & operator<< (std::ostream &os, const VectorSet< V, M > &obj)


Detailed Description

template<class V = GslVector, class M = GslMatrix>
class QUESO::VectorSet< V, M >

A templated class for handling sets.

This class allows the mathematical definition of a scalar function such as: $ \pi: B \subset R^n \rightarrow R $, since it requires the specification of the domain $ B $, which is a subset of the vector space $ R^n $, which is itself a set.

Definition at line 52 of file VectorSet.h.

Constructor & Destructor Documentation

template<class V , class M >
QUESO::VectorSet< V, M >::VectorSet ( const BaseEnvironment &  env,
const char *  prefix,
double  volume
)

Shaped constructor.

Creates a vector set given an environment, a identifying prefix and a volume.

Definition at line 44 of file VectorSet.C.

References QUESO::BaseEnvironment::displayVerbosity(), QUESO::VectorSet< V, M >::m_env, and QUESO::BaseEnvironment::subDisplayFile().

46  : m_env(env),
47  m_prefix(prefix),
48  m_volume(volume)
49 {
50  if ((m_env.subDisplayFile()) && (m_env.displayVerbosity() >= 54)) {
51  *m_env.subDisplayFile() << "Entering VectorSet<V,M>::constructor()"
52  << std::endl;
53  }
54
55  if ((m_env.subDisplayFile()) && (m_env.displayVerbosity() >= 54)) {
56  *m_env.subDisplayFile() << "Leaving VectorSet<V,M>::constructor()"
57  << std::endl;
58  }
59 }
QUESO::BaseEnvironment::subDisplayFile
std::ofstream * subDisplayFile() const
Access function for m_subDisplayFile (displays file on stream).
Definition: Environment.C:320
QUESO::VectorSet::env
const BaseEnvironment & env() const
Environment. Access to private attribute m_env.
Definition: VectorSet.C:78
QUESO::VectorSet::m_prefix
std::string m_prefix
Definition: VectorSet.h:105
QUESO::VectorSet::volume
double volume() const
Set volume; access to private attribute m_volume.
Definition: VectorSet.C:91
QUESO::VectorSet::prefix
const std::string & prefix() const
Access to private attribute m_prefix.
Definition: VectorSet.C:84
QUESO::BaseEnvironment::displayVerbosity
unsigned int displayVerbosity() const
Definition: Environment.C:449
QUESO::VectorSet::m_env
const BaseEnvironment & m_env
Definition: VectorSet.h:104
template<class V , class M >
QUESO::VectorSet< V, M >::~VectorSet ( )
virtual

Virtual destructor.

Definition at line 63 of file VectorSet.C.

64 {
65  if ((m_env.subDisplayFile()) && (m_env.displayVerbosity() >= 54)) {
66  *m_env.subDisplayFile() << "Entering VectorSet<V,M>::destructor()"
67  << std::endl;
68  }
69
70  if ((m_env.subDisplayFile()) && (m_env.displayVerbosity() >= 54)) {
71  *m_env.subDisplayFile() << "Leaving VectorSet<V,M>::destructor()"
72  << std::endl;
73  }
74 }
QUESO::BaseEnvironment::subDisplayFile
std::ofstream * subDisplayFile() const
Access function for m_subDisplayFile (displays file on stream).
Definition: Environment.C:320
QUESO::BaseEnvironment::displayVerbosity
unsigned int displayVerbosity() const
Definition: Environment.C:449
QUESO::VectorSet::m_env
const BaseEnvironment & m_env
Definition: VectorSet.h:104
template<class V , class M >
QUESO::VectorSet< V, M >::VectorSet ( )
private

Default Constructor.

It should not be used by the user.

Definition at line 37 of file VectorSet.C.

38  : m_env(*(new EmptyEnvironment()))
39 {
40 }
QUESO::VectorSet::m_env
const BaseEnvironment & m_env
Definition: VectorSet.h:104

Member Function Documentation

template<class V = GslVector, class M = GslMatrix>
virtual void QUESO::VectorSet< V, M >::centroid ( V &  vec) const
pure virtual

Returns the set centroid in the vector vec. See template specialization.

Implemented in QUESO::VectorSpace< V, M >, QUESO::ConcatenationSubset< V, M >, QUESO::BoxSubset< V, M >, and QUESO::IntersectionSubset< V, M >.

template<class V = GslVector, class M = GslMatrix>
virtual bool QUESO::VectorSet< V, M >::contains ( const V &  vec) const
pure virtual

Checks whether a set contains vector vec. See template specialization.

Implemented in QUESO::VectorSpace< V, M >, QUESO::ConcatenationSubset< V, M >, QUESO::VectorSubset< V, M >, QUESO::BoxSubset< V, M >, QUESO::IntersectionSubset< V, M >, and QUESO::DiscreteSubset< V, M >.

template<class V , class M >
const BaseEnvironment & QUESO::VectorSet< V, M >::env ( ) const

Environment. Access to private attribute m_env.

Definition at line 78 of file VectorSet.C.

79 {
80  return m_env;
81 }
QUESO::VectorSet::m_env
const BaseEnvironment & m_env
Definition: VectorSet.h:104
template<class V = GslVector, class M = GslMatrix>
virtual void QUESO::VectorSet< V, M >::moments ( M &  mat) const
pure virtual

Returns the set moments of inertia in the matrix mat. See template specialization.

Implemented in QUESO::VectorSpace< V, M >, QUESO::ConcatenationSubset< V, M >, QUESO::BoxSubset< V, M >, and QUESO::IntersectionSubset< V, M >.

template<class V , class M >
const std::string & QUESO::VectorSet< V, M >::prefix ( ) const

Access to private attribute m_prefix.

Definition at line 84 of file VectorSet.C.

Referenced by QUESO::InstantiateIntersection().

85 {
86  return m_prefix;
87 }
QUESO::VectorSet::m_prefix
std::string m_prefix
Definition: VectorSet.h:105
template<class V , class M >
void QUESO::VectorSet< V, M >::print ( std::ostream &  os) const
virtual

Prints nothing.

Reimplemented in QUESO::VectorSpace< V, M >, QUESO::VectorSpace< S_V, S_M >, QUESO::VectorSpace< D_V, D_M >, QUESO::VectorSpace< QUESO::GslVector, QUESO::GslMatrix >, QUESO::VectorSpace< P_V, P_M >, QUESO::VectorSpace< Q_V, Q_M >, QUESO::BoxSubset< V, M >, QUESO::BoxSubset< S_V, S_M >, QUESO::BoxSubset< P_V, P_M >, QUESO::BoxSubset< Q_V, Q_M >, QUESO::ConcatenationSubset< V, M >, QUESO::ConcatenationSubset< P_V, P_M >, QUESO::IntersectionSubset< V, M >, QUESO::VectorSubset< V, M >, QUESO::VectorSubset< S_V, S_M >, QUESO::VectorSubset< Q_V, Q_M >, QUESO::VectorSubset< P_V, P_M >, and QUESO::DiscreteSubset< V, M >.

Definition at line 98 of file VectorSet.C.

99 {
100  os << "In VectorSet<V,M>::print()"
101  << ": nothing to be printed" << std::endl;
102  return;
103 }
template<class V = GslVector, class M = GslMatrix>
virtual const VectorSpace<V,M>& QUESO::VectorSet< V, M >::vectorSpace ( ) const
pure virtual

Vector space to which this set belongs to. See template specialization.

Implemented in QUESO::VectorSpace< V, M >, QUESO::VectorSpace< S_V, S_M >, QUESO::VectorSpace< D_V, D_M >, QUESO::VectorSpace< QUESO::GslVector, QUESO::GslMatrix >, QUESO::VectorSpace< P_V, P_M >, QUESO::VectorSpace< Q_V, Q_M >, QUESO::VectorSubset< V, M >, QUESO::VectorSubset< S_V, S_M >, QUESO::VectorSubset< Q_V, Q_M >, and QUESO::VectorSubset< P_V, P_M >.

Referenced by QUESO::ComputeCovCorrMatricesBetweenVectorRvs(), QUESO::ConcatenatedJointPdf< V, M >::ConcatenatedJointPdf(), QUESO::ExponentialMatrixCovarianceFunction< P_V, P_M, Q_V, Q_M >::ExponentialMatrixCovarianceFunction(), QUESO::InstantiateIntersection(), and QUESO::StatisticalInverseProblem< P_V, P_M >::StatisticalInverseProblem().

template<class V , class M >
double QUESO::VectorSet< V, M >::volume ( ) const

Set volume; access to private attribute m_volume.

Definition at line 91 of file VectorSet.C.

Referenced by QUESO::UniformVectorRealizer< V, M >::realization().

92 {
93  return m_volume;
94 }

Friends And Related Function Documentation

template<class V = GslVector, class M = GslMatrix>
std::ostream& operator<< ( std::ostream &  os,
const VectorSet< V, M > &  obj
)
friend

Definition at line 96 of file VectorSet.h.

97  {
98  obj.print(os);
99  return os;
100  }

Member Data Documentation

template<class V = GslVector, class M = GslMatrix>
const BaseEnvironment& QUESO::VectorSet< V, M >::m_env
protected

Definition at line 104 of file VectorSet.h.

Referenced by QUESO::VectorSet< V, M >::VectorSet(), QUESO::VectorSpace< V, M >::VectorSpace(), and QUESO::VectorSubset< V, M >::VectorSubset().

template<class V = GslVector, class M = GslMatrix>
std::string QUESO::VectorSet< V, M >::m_prefix
protected

Definition at line 105 of file VectorSet.h.

Referenced by QUESO::VectorSpace< V, M >::VectorSpace().

template<class V = GslVector, class M = GslMatrix>
double QUESO::VectorSet< V, M >::m_volume
protected

Definition at line 106 of file VectorSet.h.

Referenced by QUESO::BoxSubset< V, M >::BoxSubset(), and QUESO::DiscreteSubset< V, M >::DiscreteSubset().

The documentation for this class was generated from the following files:
