Class for representing block matrices using GSL library. More...

#include <GslBlockMatrix.h>

Inheritance diagram for QUESO::GslBlockMatrix:

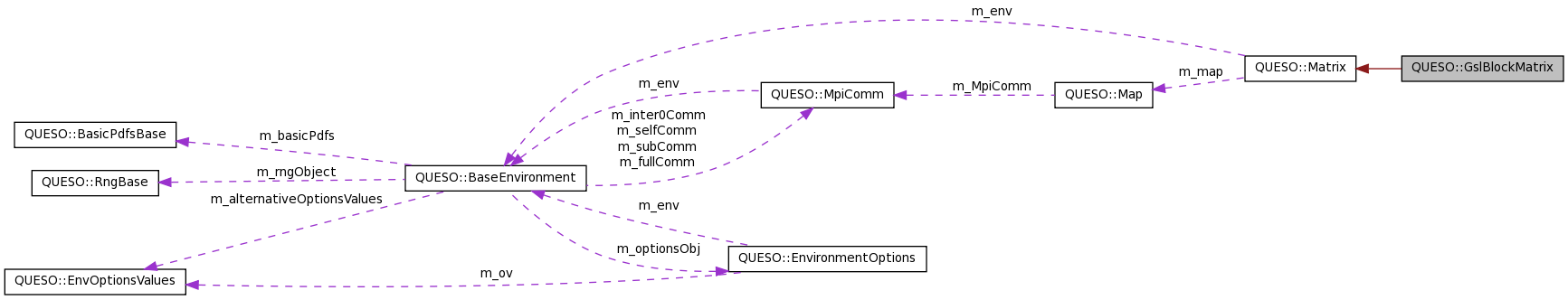

Collaboration diagram for QUESO::GslBlockMatrix:

Public Member Functions
virtual unsigned int	numRowsLocal () const
	Not implemented yet. More...

virtual unsigned int	numRowsGlobal () const
	Not implemented yet. More...

virtual unsigned int	numCols () const
	Not implemented yet. More...

virtual int	chol ()
	Not implemented yet. More...

virtual void	zeroLower (bool includeDiagonal=false)
	Not implemented yet. More...

virtual void	zeroUpper (bool includeDiagonal=false)
	Not implemented yet. More...

GslMatrix &	getBlock (unsigned int i) const
	Return block `i` in the block diagonal matrix. More...

unsigned int	numBlocks () const
	Return the number of blocks in the block diagonal matrix. More...

void	invertMultiply (const GslVector &b, GslVector &x) const
	This function calculates the inverse of `this` matrix, multiplies it with vector `b` and stores the result in vector `x`. More...

Constructor/Destructor methods
	GslBlockMatrix (const std::vector< unsigned int > &blockSizes, const GslVector &v, double diagValue)
	Creates a square matrix with size defined by `v` and diagonal values all equal to `diagValue`. More...

	~GslBlockMatrix ()
	Destructor. More...

I/O methods
virtual void	print (std::ostream &os) const
	Print method. Defines the behavior of operator<< inherited from the Object class. More...

Private Attributes
std::vector< VectorSpace < GslVector, GslMatrix > * >	m_vectorSpaces

std::vector< GslMatrix * >	m_blocks

Private Attributes inherited from QUESO::Matrix
const BaseEnvironment &	m_env
	QUESO environment variable. More...

const Map &	m_map
	Mapping variable. More...

bool	m_printHorizontally
	Flag for either or not print this matrix. More...

bool	m_inDebugMode
	Flag for either or not QUESO is in debug mode. More...

Additional Inherited Members
Private Member Functions inherited from QUESO::Matrix
	Matrix ()
	Default constructor. More...

	Matrix (const BaseEnvironment &env, const Map &map)
	Shaped constructor. More...

	Matrix (const Matrix &rhs)
	Copy constructor. More...

virtual	~Matrix ()
	Virtual Destructor. More...

Matrix &	operator= (const Matrix &rhs)
	Operator for copying a matrix. More...

Matrix &	operator*= (double a)
	Operator for multiplication of the matrix by a scalar. More...

Matrix &	operator+= (const Matrix &rhs)
	Operator for addition (element-wise) of two matrices. More...

Matrix &	operator-= (const Matrix &rhs)
	Operator for subtraction (element-wise) of two matrices. More...

const BaseEnvironment &	env () const

const Map &	map () const

unsigned int	numOfProcsForStorage () const

void	setPrintHorizontally (bool value) const
	Determines whether the matrix should be printed horizontally. More...

bool	getPrintHorizontally () const
	Checks if matrix will be is printed horizontally. More...

void	setInDebugMode (bool value) const
	Determines whether QUESO will run through this class in debug mode. More...

bool	getInDebugMode () const
	Checks if QUESO will run through this class in debug mode. More...

virtual void	copy (const Matrix &src)
	Copies matrix `src` to `this` matrix. More...

Detailed Description

Class for representing block matrices using GSL library.

This class provides basic 'invertMultiply' support for matrices of block diagonal structure. Each block is implemented as a GslMatrix object.

Definition at line 50 of file GslBlockMatrix.h.

Constructor & Destructor Documentation

QUESO::GslBlockMatrix::GslBlockMatrix	(	const std::vector< unsigned int > &	blockSizes,
		const GslVector &	v,
		double	diagValue
	)

Creates a square matrix with size defined by v and diagonal values all equal to diagValue.

The blockSizes array determines the sizes of each (square) block.

Definition at line 29 of file GslBlockMatrix.C.

References m_blocks, QUESO::Matrix::m_env, and m_vectorSpaces.

   : Matrix(v.env(), v.map()),
     m_vectorSpaces(blockSizes.size()),
     m_blocks(blockSizes.size())
 {
   for (unsigned int i = 0; i < this->m_vectorSpaces.size(); i++) {
     this->m_vectorSpaces[i] = new VectorSpace<GslVector, GslMatrix>(m_env,
         "block_param_", blockSizes[i], NULL);
     this->m_blocks[i] = new GslMatrix(this->m_vectorSpaces[i]->zeroVector(),
         diagValue);
   }
 }

QUESO::GslBlockMatrix::~GslBlockMatrix ( )

Destructor.

Definition at line 43 of file GslBlockMatrix.C.

References m_blocks, and m_vectorSpaces.

 {
   for (unsigned int i = 0; i < this->m_vectorSpaces.size(); i++) {
     delete this->m_blocks[i];
     delete this->m_vectorSpaces[i];
   }
 }

Member Function Documentation

int QUESO::GslBlockMatrix::chol ( )

virtual

Not implemented yet.

Implements QUESO::Matrix.

Definition at line 73 of file GslBlockMatrix.C.

References queso_not_implemented.

 {
   queso_not_implemented();
   return 0;
 }

GslMatrix & QUESO::GslBlockMatrix::getBlock ( unsigned int i ) const

Return block i in the block diagonal matrix.

Definition at line 93 of file GslBlockMatrix.C.

References m_blocks.

Referenced by QUESO::GaussianLikelihoodBlockDiagonalCovariance< V, M >::GaussianLikelihoodBlockDiagonalCovariance(), QUESO::GaussianLikelihoodBlockDiagonalCovarianceRandomCoefficients< V, M >::GaussianLikelihoodBlockDiagonalCovarianceRandomCoefficients(), and print().

 {
   return *(this->m_blocks[i]);
 }

void QUESO::GslBlockMatrix::invertMultiply	(	const GslVector &	b,
		GslVector &	x
	)		const

This function calculates the inverse of this matrix, multiplies it with vector b and stores the result in vector x.

It checks for a previous LU decomposition of each block matrix and does not recompute it if m_MU != NULL for each block.

Definition at line 105 of file GslBlockMatrix.C.

References m_blocks, m_vectorSpaces, queso_error_msg, and QUESO::GslVector::sizeLocal().

 {
   unsigned int totalCols = 0;

   for (unsigned int i = 0; i < this->m_blocks.size(); i++) {
     totalCols += this->m_blocks[i]->numCols();
   }

   if (totalCols != b.sizeLocal()) {
     queso_error_msg("block matrix and rhs have incompatible sizes");
   }

   if (x.sizeLocal() != b.sizeLocal()) {
     queso_error_msg("solution and rhs have incompatible sizes");
   }

   unsigned int blockOffset = 0;

   // Do an invertMultiply for each block
   for (unsigned int i = 0; i < this->m_blocks.size(); i++) {
     GslVector blockRHS(this->m_vectorSpaces[i]->zeroVector());
     GslVector blockSol(this->m_vectorSpaces[i]->zeroVector());

     // Be sure to copy over the RHS to the right sized vector
     for (unsigned int j = 0; j < this->m_blocks[i]->numCols(); j++) {
       blockRHS[j] = b[blockOffset + j];
     }

     // Solve
     this->m_blocks[i]->invertMultiply(blockRHS, blockSol);

     // Be sure to copy the block solution back to the global solution vector
     for (unsigned int j = 0; j < this->m_blocks[i]->numCols(); j++) {
       x[blockOffset + j] = blockSol[j];
     }

     // Remember to increment the offset so we don't lose our place for the next
     // block
     blockOffset += this->m_blocks[i]->numCols();
   }
 }

unsigned int QUESO::GslBlockMatrix::numBlocks ( ) const

Return the number of blocks in the block diagonal matrix.

Definition at line 99 of file GslBlockMatrix.C.

References m_blocks.

Referenced by QUESO::GaussianLikelihoodBlockDiagonalCovariance< V, M >::GaussianLikelihoodBlockDiagonalCovariance(), QUESO::GaussianLikelihoodBlockDiagonalCovarianceRandomCoefficients< V, M >::GaussianLikelihoodBlockDiagonalCovarianceRandomCoefficients(), and print().

 {
   return this->m_blocks.size();
 }

unsigned int QUESO::GslBlockMatrix::numCols ( ) const

virtual

Not implemented yet.

Implements QUESO::Matrix.

Definition at line 66 of file GslBlockMatrix.C.

References queso_not_implemented.

 {
   queso_not_implemented();
   return 0;
 }

unsigned int QUESO::GslBlockMatrix::numRowsGlobal ( ) const

virtual

Not implemented yet.

Implements QUESO::Matrix.

Definition at line 59 of file GslBlockMatrix.C.

References queso_not_implemented.

 {
   queso_not_implemented();
   return 0;
 }

unsigned int QUESO::GslBlockMatrix::numRowsLocal ( ) const

virtual

Not implemented yet.

Implements QUESO::Matrix.

Definition at line 53 of file GslBlockMatrix.C.

References queso_not_implemented.

 {
   queso_not_implemented();
 }

void QUESO::GslBlockMatrix::print ( std::ostream & os ) const

virtual

Print method. Defines the behavior of operator<< inherited from the Object class.

Implements QUESO::Matrix.

Definition at line 148 of file GslBlockMatrix.C.

References getBlock(), numBlocks(), and QUESO::GslMatrix::print().

Referenced by QUESO::operator<<().

 {
   for (unsigned int i = 0; i < this->numBlocks(); i++) {
     this->getBlock(i).print(os);
   }
 }

void QUESO::GslBlockMatrix::zeroLower ( bool includeDiagonal = false )

virtual

Not implemented yet.

Implements QUESO::Matrix.

Definition at line 80 of file GslBlockMatrix.C.

References queso_not_implemented.

 {
   queso_not_implemented();
 }

void QUESO::GslBlockMatrix::zeroUpper ( bool includeDiagonal = false )

virtual

Not implemented yet.

Implements QUESO::Matrix.

Definition at line 86 of file GslBlockMatrix.C.

References queso_not_implemented.

 {
   queso_not_implemented();
 }

Member Data Documentation

std::vector<GslMatrix *> QUESO::GslBlockMatrix::m_blocks

private

Definition at line 105 of file GslBlockMatrix.h.

Referenced by getBlock(), GslBlockMatrix(), invertMultiply(), numBlocks(), and ~GslBlockMatrix().

std::vector<VectorSpace<GslVector, GslMatrix> *> QUESO::GslBlockMatrix::m_vectorSpaces

private

Definition at line 104 of file GslBlockMatrix.h.

Referenced by GslBlockMatrix(), invertMultiply(), and ~GslBlockMatrix().

The documentation for this class was generated from the following files:

src/core/inc/GslBlockMatrix.h
src/core/src/GslBlockMatrix.C
