QUESO::ScalarFunctionSynchronizer< V, M > Class Template Reference

A templated class for synchronizing the calls of scalar functions (BaseScalarFunction and derived classes). More...

#include <ScalarFunctionSynchronizer.h>

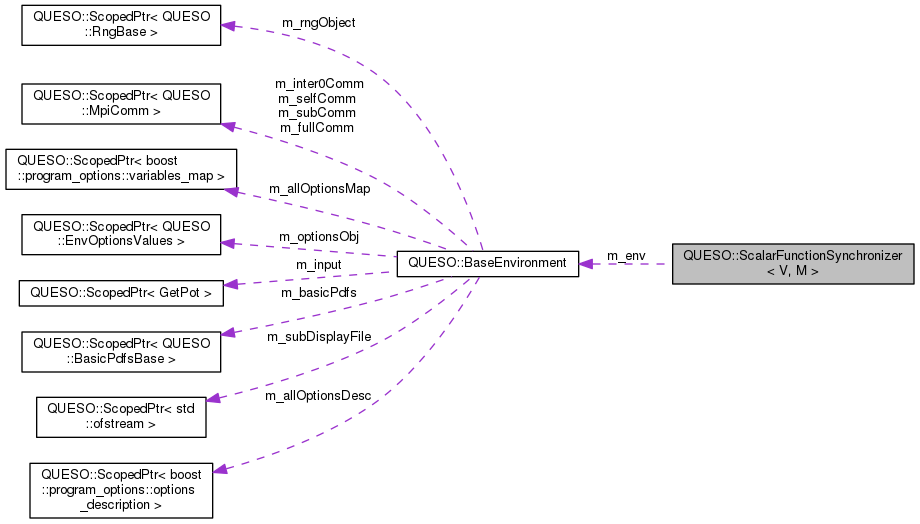

Collaboration diagram for QUESO::ScalarFunctionSynchronizer< V, M >:
Collaboration graph
[legend]

Public Member Functions

Constructor/Destructor methods
 ScalarFunctionSynchronizer (const BaseScalarFunction< V, M > &inputFunction, const V &auxVec)
 Default constructor. More...

 ~ScalarFunctionSynchronizer ()
 Destructor. More...

Mathematical methods
const VectorSet< V, M > & domainSet () const
 Access to the domain set of the scalar function which will be synchronized. More...

Sync method
double callFunction (const V *vecValues, const V *vecDirection, V *gradVector, M *hessianMatrix, V *hessianEffect, double *extraOutput1, double *extraOutput2) const
 Calls the scalar function which will be synchronized. More...

double callFunction (const V *vecValues, double *extraOutput1, double *extraOutput2) const


Private Attributes

const BaseEnvironment & m_env

const BaseScalarFunction< V, M > & m_scalarFunction

const BayesianJointPdf< V, M > * m_bayesianJointPdfPtr

const V & m_auxVec


Detailed Description

template<class V = GslVector, class M = GslMatrix>
class QUESO::ScalarFunctionSynchronizer< V, M >

A templated class for synchronizing the calls of scalar functions (BaseScalarFunction and derived classes).

This class creates a synchronization point among processes which call scalar functions. This means that all processes must reach a point in their code before they can all begin executing again.

Definition at line 49 of file ScalarFunctionSynchronizer.h.

Constructor & Destructor Documentation

template<class V, class M>
QUESO::ScalarFunctionSynchronizer< V, M >::ScalarFunctionSynchronizer ( const BaseScalarFunction< V, M > &  inputFunction,
const V &  auxVec
)

Default constructor.

Definition at line 37 of file ScalarFunctionSynchronizer.C.

40  : m_env(inputFunction.domainSet().env()),
41  m_scalarFunction(inputFunction),
42  m_bayesianJointPdfPtr(dynamic_cast<const BayesianJointPdf<V,M>* >(&m_scalarFunction)),
43  m_auxVec(auxVec)
44 {
45 }
QUESO::ScalarFunctionSynchronizer::m_scalarFunction
const BaseScalarFunction< V, M > & m_scalarFunction
Definition: ScalarFunctionSynchronizer.h:87
QUESO::ScalarFunctionSynchronizer::m_bayesianJointPdfPtr
const BayesianJointPdf< V, M > * m_bayesianJointPdfPtr
Definition: ScalarFunctionSynchronizer.h:88
template<class V , class M >
QUESO::ScalarFunctionSynchronizer< V, M >::~ScalarFunctionSynchronizer ( )

Destructor.

Definition at line 49 of file ScalarFunctionSynchronizer.C.

50 {
51 }

Member Function Documentation

template<class V, class M>
double QUESO::ScalarFunctionSynchronizer< V, M >::callFunction ( const V *  vecValues,
const V *  vecDirection,
V *  gradVector,
M *  hessianMatrix,
V *  hessianEffect,
double *  extraOutput1,
double *  extraOutput2
) const

Calls the scalar function which will be synchronized.

This procedure forms a barrier, and no processes in the communicator can pass the barrier until all of them call the function.

Definition at line 62 of file ScalarFunctionSynchronizer.C.

69 {
70  double result = 0.;
71
72  if ((m_env.numSubEnvironments() < (unsigned int) m_env.fullComm().NumProc()) &&
73  (m_auxVec.numOfProcsForStorage() == 1 )) {
74  bool stayInRoutine = true;
75  do {
76  const V* internalValues = NULL;
77  const V* internalDirection = NULL;
78  V* internalGrad = NULL;
79  M* internalHessian = NULL;
80  V* internalEffect = NULL;
81
83  // Broadcast 1 of 3
85  // bufferChar[0] = '0' or '1' (vecValues is NULL or not)
86  // bufferChar[1] = '0' or '1' (vecDirection is NULL or not)
87  // bufferChar[2] = '0' or '1' (gradVector is NULL or not)
88  // bufferChar[3] = '0' or '1' (hessianMatrix is NULL or not)
89  // bufferChar[4] = '0' or '1' (hessianEffect is NULL or not)
90  std::vector<char> bufferChar(5,'0');
91
92  if (m_env.subRank() == 0) {
93  internalValues = vecValues;
94  internalDirection = vecDirection;
95  internalGrad = gradVector;
96  internalHessian = hessianMatrix;
97  internalEffect = hessianEffect;
98
99  if (internalValues != NULL) bufferChar[0] = '1';
100  if (internalDirection != NULL) bufferChar[1] = '1';
101  if (internalGrad != NULL) bufferChar[2] = '1';
102  if (internalHessian != NULL) bufferChar[3] = '1';
103  if (internalEffect != NULL) bufferChar[4] = '1';
104  }
105
106  m_env.subComm().syncPrintDebugMsg("In ScalarFunctionSynchronizer<V,M>::callFunction(), just before char Bcast()",3,3000000);
107  //if (m_env.subId() != 0) while (true) sleep(1);
108
109  int count = (int) bufferChar.size();
110  m_env.subComm().Bcast((void *) &bufferChar[0], count, RawValue_MPI_CHAR, 0,
111  "ScalarFunctionSynchronizer<V,M>::callFunction()",
112  "failed broadcast 1 of 3");
113
114  m_env.subComm().syncPrintDebugMsg("In ScalarFunctionSynchronizer<V,M>::callFunction(), just after char Bcast()",3,3000000);
115  //std::cout << "char contents = " << bufferChar[0] << " " << bufferChar[1] << " " << bufferChar[2] << " " << bufferChar[3] << " " << bufferChar[4]
116  // << std::endl;
117
118  if (bufferChar[0] == '1') {
120  // Broadcast 2 of 3
122
123  // bufferDouble[0...] = contents for (eventual) vecValues
124  std::vector<double> bufferDouble(m_auxVec.sizeLocal(),0.);
125
126  if (m_env.subRank() == 0) {
127  for (unsigned int i = 0; i < internalValues->sizeLocal(); ++i) {
128  bufferDouble[i] = (*internalValues)[i];
129  }
130  }
131
132  //m_env.fullComm().Barrier();
133  //for (int i = 0; i < m_env.fullComm().NumProc(); ++i) {
134  // if (i == m_env.fullRank()) {
135  // std::cout << " In ScalarFunctionSynchronizer<V,M>::callFunction(), just before double Bcast()"
136  // << ": fullRank " << m_env.fullRank()
137  // << ", subEnvironment " << m_env.subId()
138  // << ", subRank " << m_env.subRank()
139  // << ": buffer related to first double Bcast() is ready to be broadcasted"
140  // << " and has size " << bufferDouble.size()
141  // << std::endl;
142  // if (m_env.subRank() == 0) {
143  // std::cout << "Buffer contents are";
144  // for (unsigned int i = 0; i < bufferDouble.size(); ++i) {
145  // std::cout << " " << bufferDouble[i];
146  // }
147  // std::cout << std::endl;
148  // }
149  // }
150  // m_env.fullComm().Barrier();
151  //}
152  //if (m_env.fullRank() == 0) std::cout << "Sleeping 3 seconds..."
153  // << std::endl;
154  //sleep(3);
155
156  count = (int) bufferDouble.size();
157  m_env.subComm().Bcast((void *) &bufferDouble[0], count, RawValue_MPI_DOUBLE, 0,
158  "ScalarFunctionSynchronizer<V,M>::callFunction()",
159  "failed broadcast 2 of 3");
160
161  if (m_env.subRank() != 0) {
162  V tmpVec(m_auxVec);
163  for (unsigned int i = 0; i < tmpVec.sizeLocal(); ++i) {
164  tmpVec[i] = bufferDouble[i];
165  }
166  internalValues = new V(tmpVec);
167  //if (vecValues) *vecValues = tmpVec; // prudencio 2010-08-01
168  }
169
170  if (bufferChar[1] == '1') {
172  // Broadcast 3 of 3
174  // bufferDouble[0...] = contents for (eventual) vecDirection
175
176  if (m_env.subRank() == 0) {
177  for (unsigned int i = 0; i < internalDirection->sizeLocal(); ++i) {
178  bufferDouble[i] = (*internalDirection)[i];
179  }
180  }
181
182  count = (int) bufferDouble.size();
183  m_env.subComm().Bcast((void *) &bufferDouble[0], count, RawValue_MPI_DOUBLE, 0,
184  "ScalarFunctionSynchronizer<V,M>::callFunction()",
185  "failed broadcast 3 of 3");
186
187  if (m_env.subRank() != 0) {
188  V tmpVec(m_auxVec);
189  for (unsigned int i = 0; i < tmpVec.sizeLocal(); ++i) {
190  tmpVec[i] = bufferDouble[i];
191  }
192  internalDirection = new V(tmpVec);
193  }
194  }
195
197  // All processors now call 'scalarFunction()'
199  if (m_env.subRank() != 0) {
200  if (bufferChar[2] == '1') internalGrad = new V(m_auxVec);
201  if (bufferChar[3] == '1') internalHessian = new M(m_auxVec);
202  if (bufferChar[4] == '1') internalEffect = new V(m_auxVec);
203  }
204
205  m_env.subComm().syncPrintDebugMsg("In ScalarFunctionSynchronizer<V,M>::callFunction(), just before actual lnValue()",3,3000000);
206  m_env.subComm().Barrier();
207  result = m_scalarFunction.lnValue(*internalValues, // input
208  internalDirection, // input
209  internalGrad, // output
210  internalHessian, // output
211  internalEffect); // output
212  if (extraOutput1) {
213  if (m_bayesianJointPdfPtr) {
214  *extraOutput1 = m_bayesianJointPdfPtr->lastComputedLogPrior();
215  }
216  }
217  if (extraOutput2) {
218  if (m_bayesianJointPdfPtr) {
219  *extraOutput2 = m_bayesianJointPdfPtr->lastComputedLogLikelihood();
220  }
221  }
222  } // if (bufferChar[0] == '1')
223
225  // Prepare to exit routine or to stay in it
227  if (m_env.subRank() == 0) {
228  stayInRoutine = false; // Always for processor 0
229  }
230  else {
231  if (internalValues != NULL) delete internalValues;
232  if (internalDirection != NULL) delete internalDirection;
233  if (internalGrad != NULL) delete internalGrad;
234  if (internalHessian != NULL) delete internalHessian;
235  if (internalEffect != NULL) delete internalEffect;
236
237  stayInRoutine = (vecValues == NULL) && (bufferChar[0] == '1');
238  //if (!stayInRoutine) std::cout << "Fullrank " << m_env.fullRank() << " is leaving scalarFunctionSync()" << std::endl;
239  }
240  } while (stayInRoutine);
241  }
242  else {
243  queso_require_msg(vecValues, "vecValues should not be NULL");
244
245  m_env.subComm().Barrier();
246  result = m_scalarFunction.lnValue(*vecValues,
247  vecDirection,
248  gradVector,
249  hessianMatrix,
250  hessianEffect);
251  if (extraOutput1) {
252  if (m_bayesianJointPdfPtr) {
253  *extraOutput1 = m_bayesianJointPdfPtr->lastComputedLogPrior();
254  }
255  }
256  if (extraOutput2) {
257  if (m_bayesianJointPdfPtr) {
258  *extraOutput2 = m_bayesianJointPdfPtr->lastComputedLogLikelihood();
259  }
260  }
261  }
262
263  return result;
264 }
QUESO::ScalarFunctionSynchronizer::m_scalarFunction
const BaseScalarFunction< V, M > & m_scalarFunction
Definition: ScalarFunctionSynchronizer.h:87
QUESO::BaseEnvironment::subComm
const MpiComm & subComm() const
Access function for each sub-environment&#39;s communicator.
Definition: Environment.C:293
QUESO::MpiComm::syncPrintDebugMsg
void syncPrintDebugMsg(const char *msg, unsigned int msgVerbosity, unsigned int numUSecs) const
Synchronizes all the processes and print debug message.
Definition: MpiComm.C:333
QUESO::MpiComm::Barrier
void Barrier() const
Pause every process in *this communicator until all the processes reach this point.
Definition: MpiComm.C:174
QUESO::BaseEnvironment::subRank
int subRank() const
Returns the rank of the MPI process in the sub-communicator subComm()
Definition: Environment.C:287
QUESO::ScalarFunctionSynchronizer::m_bayesianJointPdfPtr
const BayesianJointPdf< V, M > * m_bayesianJointPdfPtr
Definition: ScalarFunctionSynchronizer.h:88
QUESO::MpiComm::NumProc
int NumProc() const
Returns total number of processes.
Definition: MpiComm.C:133
QUESO::MpiComm::Bcast
void Bcast(void *buffer, int count, RawType_MPI_Datatype datatype, int root, const char *whereMsg, const char *whatMsg) const
Broadcast values from the root process to the slave processes.
Definition: MpiComm.C:191
QUESO::BaseEnvironment::fullComm
const MpiComm & fullComm() const
Access function for the communicator that was passed to QUESO&#39;s environment.
Definition: Environment.C:274
QUESO::BaseEnvironment::numSubEnvironments
unsigned int numSubEnvironments() const
Access function to the number of sub-environments.
Definition: Environment.C:335
template<class V, class M>
double QUESO::ScalarFunctionSynchronizer< V, M >::callFunction ( const V *  vecValues,
double *  extraOutput1,
double *  extraOutput2
) const

Definition at line 268 of file ScalarFunctionSynchronizer.C.

271 {
272  double result = 0.;
273
274  if ((m_env.numSubEnvironments() < (unsigned int) m_env.fullComm().NumProc()) &&
275  (m_auxVec.numOfProcsForStorage() == 1 )) {
276  bool stayInRoutine = true;
277  do {
278  const V* internalValues = NULL;
279  const V* internalDirection = NULL;
280  V* internalGrad = NULL;
281  M* internalHessian = NULL;
282  V* internalEffect = NULL;
283
285  // Broadcast 1 of 3
287  // bufferChar[0] = '0' or '1' (vecValues is NULL or not)
288  // bufferChar[1] = '0' or '1' (vecDirection is NULL or not)
289  // bufferChar[2] = '0' or '1' (gradVector is NULL or not)
290  // bufferChar[3] = '0' or '1' (hessianMatrix is NULL or not)
291  // bufferChar[4] = '0' or '1' (hessianEffect is NULL or not)
292  std::vector<char> bufferChar(5,'0');
293
294  if (m_env.subRank() == 0) {
295  internalValues = vecValues;
296
297  if (internalValues != NULL) bufferChar[0] = '1';
298  if (internalDirection != NULL) bufferChar[1] = '1';
299  if (internalGrad != NULL) bufferChar[2] = '1';
300  if (internalHessian != NULL) bufferChar[3] = '1';
301  if (internalEffect != NULL) bufferChar[4] = '1';
302  }
303
304  m_env.subComm().syncPrintDebugMsg("In ScalarFunctionSynchronizer<V,M>::callFunction(), just before char Bcast()",3,3000000);
305  //if (m_env.subId() != 0) while (true) sleep(1);
306
307  int count = (int) bufferChar.size();
308  m_env.subComm().Bcast((void *) &bufferChar[0], count, RawValue_MPI_CHAR, 0,
309  "ScalarFunctionSynchronizer<V,M>::callFunction()",
310  "failed broadcast 1 of 3");
311
312  m_env.subComm().syncPrintDebugMsg("In ScalarFunctionSynchronizer<V,M>::callFunction(), just after char Bcast()",3,3000000);
313  //std::cout << "char contents = " << bufferChar[0] << " " << bufferChar[1] << " " << bufferChar[2] << " " << bufferChar[3] << " " << bufferChar[4]
314  // << std::endl;
315
316  if (bufferChar[0] == '1') {
318  // Broadcast 2 of 3
320
321  // bufferDouble[0...] = contents for (eventual) vecValues
322  std::vector<double> bufferDouble(m_auxVec.sizeLocal(),0.);
323
324  if (m_env.subRank() == 0) {
325  for (unsigned int i = 0; i < internalValues->sizeLocal(); ++i) {
326  bufferDouble[i] = (*internalValues)[i];
327  }
328  }
329
330  //m_env.fullComm().Barrier();
331  //for (int i = 0; i < m_env.fullComm().NumProc(); ++i) {
332  // if (i == m_env.fullRank()) {
333  // std::cout << " In ScalarFunctionSynchronizer<V,M>::callFunction(), just before double Bcast()"
334  // << ": fullRank " << m_env.fullRank()
335  // << ", subEnvironment " << m_env.subId()
336  // << ", subRank " << m_env.subRank()
337  // << ": buffer related to first double Bcast() is ready to be broadcasted"
338  // << " and has size " << bufferDouble.size()
339  // << std::endl;
340  // if (m_env.subRank() == 0) {
341  // std::cout << "Buffer contents are";
342  // for (unsigned int i = 0; i < bufferDouble.size(); ++i) {
343  // std::cout << " " << bufferDouble[i];
344  // }
345  // std::cout << std::endl;
346  // }
347  // }
348  // m_env.fullComm().Barrier();
349  //}
350  //if (m_env.fullRank() == 0) std::cout << "Sleeping 3 seconds..."
351  // << std::endl;
352  //sleep(3);
353
354  count = (int) bufferDouble.size();
355  m_env.subComm().Bcast((void *) &bufferDouble[0], count, RawValue_MPI_DOUBLE, 0,
356  "ScalarFunctionSynchronizer<V,M>::callFunction()",
357  "failed broadcast 2 of 3");
358
359  if (m_env.subRank() != 0) {
360  V tmpVec(m_auxVec);
361  for (unsigned int i = 0; i < tmpVec.sizeLocal(); ++i) {
362  tmpVec[i] = bufferDouble[i];
363  }
364  internalValues = new V(tmpVec);
365  //if (vecValues) *vecValues = tmpVec; // prudencio 2010-08-01
366  }
367
368  if (bufferChar[1] == '1') {
370  // Broadcast 3 of 3
372  // bufferDouble[0...] = contents for (eventual) vecDirection
373
374  if (m_env.subRank() == 0) {
375  for (unsigned int i = 0; i < internalDirection->sizeLocal(); ++i) {
376  bufferDouble[i] = (*internalDirection)[i];
377  }
378  }
379
380  count = (int) bufferDouble.size();
381  m_env.subComm().Bcast((void *) &bufferDouble[0], count, RawValue_MPI_DOUBLE, 0,
382  "ScalarFunctionSynchronizer<V,M>::callFunction()",
383  "failed broadcast 3 of 3");
384
385  if (m_env.subRank() != 0) {
386  V tmpVec(m_auxVec);
387  for (unsigned int i = 0; i < tmpVec.sizeLocal(); ++i) {
388  tmpVec[i] = bufferDouble[i];
389  }
390  internalDirection = new V(tmpVec);
391  }
392  }
393
395  // All processors now call 'scalarFunction()'
397  if (m_env.subRank() != 0) {
398  if (bufferChar[2] == '1') internalGrad = new V(m_auxVec);
399  if (bufferChar[3] == '1') internalHessian = new M(m_auxVec);
400  if (bufferChar[4] == '1') internalEffect = new V(m_auxVec);
401  }
402
403  m_env.subComm().syncPrintDebugMsg("In ScalarFunctionSynchronizer<V,M>::callFunction(), just before actual lnValue()",3,3000000);
404  m_env.subComm().Barrier();
405  result = m_scalarFunction.lnValue(*internalValues);
406  if (extraOutput1) {
407  if (m_bayesianJointPdfPtr) {
408  *extraOutput1 = m_bayesianJointPdfPtr->lastComputedLogPrior();
409  }
410  }
411  if (extraOutput2) {
412  if (m_bayesianJointPdfPtr) {
413  *extraOutput2 = m_bayesianJointPdfPtr->lastComputedLogLikelihood();
414  }
415  }
416  } // if (bufferChar[0] == '1')
417
419  // Prepare to exit routine or to stay in it
421  if (m_env.subRank() == 0) {
422  stayInRoutine = false; // Always for processor 0
423  }
424  else {
425  if (internalValues != NULL) delete internalValues;
426  if (internalDirection != NULL) delete internalDirection;
427  if (internalGrad != NULL) delete internalGrad;
428  if (internalHessian != NULL) delete internalHessian;
429  if (internalEffect != NULL) delete internalEffect;
430
431  stayInRoutine = (vecValues == NULL) && (bufferChar[0] == '1');
432  //if (!stayInRoutine) std::cout << "Fullrank " << m_env.fullRank() << " is leaving scalarFunctionSync()" << std::endl;
433  }
434  } while (stayInRoutine);
435  }
436  else {
437  queso_require_msg(vecValues, "vecValues should not be NULL");
438
439  m_env.subComm().Barrier();
440  result = m_scalarFunction.lnValue(*vecValues);
441  if (extraOutput1) {
442  if (m_bayesianJointPdfPtr) {
443  *extraOutput1 = m_bayesianJointPdfPtr->lastComputedLogPrior();
444  }
445  }
446  if (extraOutput2) {
447  if (m_bayesianJointPdfPtr) {
448  *extraOutput2 = m_bayesianJointPdfPtr->lastComputedLogLikelihood();
449  }
450  }
451  }
452
453  return result;
454 }
QUESO::ScalarFunctionSynchronizer::m_scalarFunction
const BaseScalarFunction< V, M > & m_scalarFunction
Definition: ScalarFunctionSynchronizer.h:87
QUESO::BaseEnvironment::subComm
const MpiComm & subComm() const
Access function for each sub-environment&#39;s communicator.
Definition: Environment.C:293
QUESO::MpiComm::syncPrintDebugMsg
void syncPrintDebugMsg(const char *msg, unsigned int msgVerbosity, unsigned int numUSecs) const
Synchronizes all the processes and print debug message.
Definition: MpiComm.C:333
QUESO::MpiComm::Barrier
void Barrier() const
Pause every process in *this communicator until all the processes reach this point.
Definition: MpiComm.C:174
QUESO::BaseEnvironment::subRank
int subRank() const
Returns the rank of the MPI process in the sub-communicator subComm()
Definition: Environment.C:287
QUESO::ScalarFunctionSynchronizer::m_bayesianJointPdfPtr
const BayesianJointPdf< V, M > * m_bayesianJointPdfPtr
Definition: ScalarFunctionSynchronizer.h:88
QUESO::MpiComm::NumProc
int NumProc() const
Returns total number of processes.
Definition: MpiComm.C:133
QUESO::MpiComm::Bcast
void Bcast(void *buffer, int count, RawType_MPI_Datatype datatype, int root, const char *whereMsg, const char *whatMsg) const
Broadcast values from the root process to the slave processes.
Definition: MpiComm.C:191
QUESO::BaseEnvironment::fullComm
const MpiComm & fullComm() const
Access function for the communicator that was passed to QUESO&#39;s environment.
Definition: Environment.C:274
QUESO::BaseEnvironment::numSubEnvironments
unsigned int numSubEnvironments() const
Access function to the number of sub-environments.
Definition: Environment.C:335
template<class V , class M >
const VectorSet< V, M > & QUESO::ScalarFunctionSynchronizer< V, M >::domainSet ( ) const

Access to the domain set of the scalar function which will be synchronized.

Definition at line 55 of file ScalarFunctionSynchronizer.C.

56 {
57  return m_scalarFunction.domainSet();
58 }
QUESO::ScalarFunctionSynchronizer::m_scalarFunction
const BaseScalarFunction< V, M > & m_scalarFunction
Definition: ScalarFunctionSynchronizer.h:87

Member Data Documentation

template<class V = GslVector, class M = GslMatrix>
const V& QUESO::ScalarFunctionSynchronizer< V, M >::m_auxVec
private

Definition at line 89 of file ScalarFunctionSynchronizer.h.

template<class V = GslVector, class M = GslMatrix>
const BayesianJointPdf<V,M>* QUESO::ScalarFunctionSynchronizer< V, M >::m_bayesianJointPdfPtr
private

Definition at line 88 of file ScalarFunctionSynchronizer.h.

template<class V = GslVector, class M = GslMatrix>
const BaseEnvironment& QUESO::ScalarFunctionSynchronizer< V, M >::m_env
private

Definition at line 86 of file ScalarFunctionSynchronizer.h.

template<class V = GslVector, class M = GslMatrix>
const BaseScalarFunction<V,M>& QUESO::ScalarFunctionSynchronizer< V, M >::m_scalarFunction
private

Definition at line 87 of file ScalarFunctionSynchronizer.h.

The documentation for this class was generated from the following files:
Generated on Sat Apr 22 2017 14:04:38 for queso-0.57.0 by  doxygen 1.8.5
