QUESO::FullEnvironment Class Reference

This class sets up the full environment underlying the use of the QUESO library by an executable. More...

#include <Environment.h>

Inheritance diagram for QUESO::FullEnvironment:

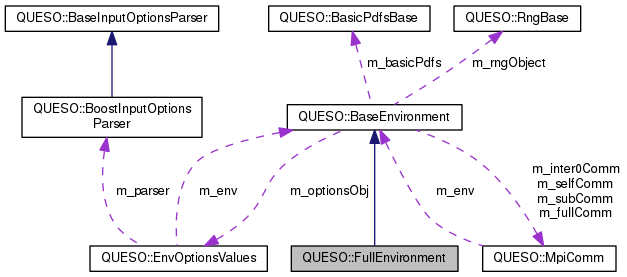

Collaboration diagram for QUESO::FullEnvironment:

Public Member Functions
Constructor/Destructor methods
	FullEnvironment (const char *passedOptionsInputFileName, const char *prefix, EnvOptionsValues *alternativeOptionsValues)
	Parallel constructor. More...
	FullEnvironment (const std::string &passedOptionsInputFileName, const std::string &prefix, EnvOptionsValues *alternativeOptionsValues)
	~FullEnvironment ()
	Destructor. More...
I/O methods
void	print (std::ostream &os) const
	Sends the environment options to the stream. More...
Public Member Functions inherited from QUESO::BaseEnvironment
	BaseEnvironment (const char *passedOptionsInputFileName, EnvOptionsValues *alternativeOptionsValues)
	Default constructor. More...
	BaseEnvironment (const std::string &passedOptionsInputFileName, EnvOptionsValues *alternativeOptionsValues)
virtual	~BaseEnvironment ()
	Destructor. More...
bool	fullEnvIsReady () const
	Returns whether the full environment class is ready (constructor has successfully been called). More...
int	worldRank () const
	Returns the process world rank. More...
int	fullRank () const
	Returns the process full rank. More...
const MpiComm &	fullComm () const
	Access function for MpiComm full communicator. More...
RawType_MPI_Group	subGroup () const
	Access function for sub-group. More...
int	subRank () const
	Access function for sub-rank. More...
const MpiComm &	subComm () const
	Access function for MpiComm sub communicator. More...
const MpiComm &	selfComm () const
	Access function for MpiComm self-communicator. More...
int	inter0Rank () const
	Returns the process inter0 rank. More...
const MpiComm &	inter0Comm () const
	Access function for MpiComm inter0-communicator. More...
std::ofstream *	subDisplayFile () const
	Access function for m_subDisplayFile (displays file on stream). More...
std::string	subDisplayFileName () const
	Access function for m_subDisplayFileName (displays filename on stream). More...
unsigned int	numSubEnvironments () const
	Access function to the number of sub-environments. More...
unsigned int	subId () const
	Access function to the number of each sub-environment Id: m_subId. More...
const std::string &	subIdString () const
	Access to the attribute m_subIdString; which stores the string for the sub-environment, and it will be used, for instance, to create the output files for each sub-environment. More...
void	checkTheParallelEnvironment () const
std::string	optionsInputFileName () const
	Access to the attribute m_optionsInputFileName, which stores the name of the input file passed by the user to QUESO. More...
void	setOptionsInputFileAccessState (bool newState) const
boost::program_options::variables_map &	allOptionsMap () const
void	scanInputFileForMyOptions (const boost::program_options::options_description &optionsDesc) const
	This method scans the input file provided by the user to QUESO. More...
unsigned int	displayVerbosity () const
unsigned int	syncVerbosity () const
	Access function to private attribute m_syncVerbosity. More...
unsigned int	checkingLevel () const
	Access function to private attribute m_checkingLevel. More...
const RngBase *	rngObject () const
	Access to the RNG object. More...
void	resetSeed (int newSeedOption)
	Reset RNG seed. More...
int	seed () const
	Access to the RNG seed. More...
const BasicPdfsBase *	basicPdfs () const
	Access to Basic PDFs. More...
std::string	platformName () const
	Access to the platform name. More...
std::string	identifyingString () const
	Access function to private attribute m_identifyingString: identifying string. More...
void	resetIdentifyingString (const std::string &newString)
	Reset private attribute m_identifyingString with the value newString. More...
bool	isThereInputFile () const
	//TODO Not implemented? it is called in examples/validationCycle/tests_old/results_5_25/uqTgaEx4.h. More...
struct timeval	timevalBegin () const
	Used to save the time when the combo `QUESO+user's application' started to run. More...
bool	openOutputFile (const std::string &fileName, const std::string &fileType, const std::set< unsigned int > &allowedSubEnvIds, bool writeOver, FilePtrSetStruct &filePtrSet) const
	Opens an output file for each sub-environment that was chosen to send data to the file. More...
bool	openUnifiedOutputFile (const std::string &fileName, const std::string &fileType, bool writeOver, FilePtrSetStruct &filePtrSet) const
	Opens a unified output file, that will contain data from all sub-environments. More...
bool	openInputFile (const std::string &fileName, const std::string &fileType, const std::set< unsigned int > &allowedSubEnvIds, FilePtrSetStruct &filePtrSet) const
	Opens an input file. More...
bool	openUnifiedInputFile (const std::string &fileName, const std::string &fileType, FilePtrSetStruct &filePtrSet) const
	Opens the unified input file. More...
void	closeFile (FilePtrSetStruct &filePtrSet, const std::string &fileType) const
	Closes the file. More...
void	setExceptionalCircumstance (bool value) const
	Set an exceptional circumstance. More...
bool	exceptionalCircumstance () const
	Decides whether there is an exceptional circumstance. More...
const GetPot &	input () const
	The GetPot input file parser. More...

Private Member Functions
void	construct (const char *prefix)
	Named constructor backend for multiple constructor overloads. More...
void	readOptionsInputFile ()
	Checks the options input file and reads the options. More...

Additional Inherited Members
Protected Attributes inherited from QUESO::BaseEnvironment
bool	m_fullEnvIsReady
int	m_worldRank
MpiComm *	m_fullComm
int	m_fullRank
int	m_fullCommSize
RawType_MPI_Group	m_fullGroup
std::string	m_optionsInputFileName
bool	m_optionsInputFileAccessState
boost::program_options::options_description *	m_allOptionsDesc
boost::program_options::variables_map *	m_allOptionsMap
ScopedPtr< GetPot >::Type	m_input
unsigned int	m_subId
std::string	m_subIdString
RawType_MPI_Group	m_subGroup
MpiComm *	m_subComm
int	m_subRank
int	m_subCommSize
MpiComm *	m_selfComm
RawType_MPI_Group	m_inter0Group
MpiComm *	m_inter0Comm
int	m_inter0Rank
int	m_inter0CommSize
std::ofstream *	m_subDisplayFile
RngBase *	m_rngObject
BasicPdfsBase *	m_basicPdfs
struct timeval	m_timevalBegin
bool	m_exceptionalCircumstance
EnvOptionsValues *	m_optionsObj

Detailed Description

This class sets up the full environment underlying the use of the QUESO library by an executable.

This is the class that is actually used during a QUESO+application run.

Definition at line 435 of file Environment.h.

Constructor & Destructor Documentation

QUESO::FullEnvironment::FullEnvironment	(	const char *	passedOptionsInputFileName,
		const char *	prefix,
		EnvOptionsValues *	alternativeOptionsValues
	)

Parallel constructor.

Initializes the full communicator, reads the options, deals with multiple sub-environments, e.g. dealing with sub/self/inter0-communicators, handles path for output files.Serial constructor.

No communicator is passed. Output path handling is exactly as in the parallel ctor.

Definition at line 1462 of file Environment.C.

References construct().

  :
  BaseEnvironment(passedOptionsInputFileName,alternativeOptionsValues)
{
  this->construct(prefix);
}

QUESO::FullEnvironment::FullEnvironment	(	const std::string &	passedOptionsInputFileName,
		const std::string &	prefix,
		EnvOptionsValues *	alternativeOptionsValues
	)

Definition at line 1472 of file Environment.C.

References construct().

  :
  BaseEnvironment(passedOptionsInputFileName,alternativeOptionsValues)
{
  this->construct(prefix.c_str());
}

QUESO::FullEnvironment::~FullEnvironment

(

)

Destructor.

Definition at line 1711 of file Environment.C.

{
}

Member Function Documentation

void QUESO::FullEnvironment::construct ( const char *  prefix )

private

Named constructor backend for multiple constructor overloads.

Definition at line 1483 of file Environment.C.

References QUESO::MpiComm::Barrier(), QUESO::CheckFilePath(), QUESO::BaseEnvironment::displayVerbosity(), QUESO::BaseEnvironment::fullComm(), QUESO::BaseEnvironment::m_allOptionsDesc, QUESO::BaseEnvironment::m_allOptionsMap, QUESO::BaseEnvironment::m_basicPdfs, QUESO::BaseEnvironment::m_fullComm, QUESO::BaseEnvironment::m_fullCommSize, QUESO::BaseEnvironment::m_fullEnvIsReady, QUESO::BaseEnvironment::m_fullGroup, QUESO::BaseEnvironment::m_fullRank, QUESO::EnvOptionsValues::m_help, QUESO::BaseEnvironment::m_input, QUESO::BaseEnvironment::m_inter0Comm, QUESO::BaseEnvironment::m_inter0CommSize, QUESO::BaseEnvironment::m_inter0Group, QUESO::BaseEnvironment::m_inter0Rank, QUESO::EnvOptionsValues::m_numSubEnvironments, QUESO::BaseEnvironment::m_optionsInputFileName, QUESO::BaseEnvironment::m_optionsObj, QUESO::BaseEnvironment::m_rngObject, QUESO::EnvOptionsValues::m_rngType, QUESO::EnvOptionsValues::m_seed, QUESO::BaseEnvironment::m_selfComm, QUESO::BaseEnvironment::m_subComm, QUESO::BaseEnvironment::m_subCommSize, QUESO::EnvOptionsValues::m_subDisplayAllowAll, QUESO::EnvOptionsValues::m_subDisplayAllowedSet, QUESO::EnvOptionsValues::m_subDisplayAllowInter0, QUESO::BaseEnvironment::m_subDisplayFile, QUESO::EnvOptionsValues::m_subDisplayFileName, QUESO::BaseEnvironment::m_subGroup, QUESO::BaseEnvironment::m_subId, QUESO::BaseEnvironment::m_subIdString, QUESO::BaseEnvironment::m_subRank, QUESO::BaseEnvironment::m_timevalBegin, QUESO::old_terminate_handler, queso_error_msg, queso_require_equal_to_msg, queso_require_greater_equal_msg, queso_require_msg, QUESO::queso_terminate_handler(), QUESO::QUESO_version_print(), readOptionsInputFile(), and UQ_ENV_FILENAME_FOR_NO_OUTPUT_FILE.

Referenced by FullEnvironment().

{
#ifdef QUESO_MEMORY_DEBUGGING
  std::cout << "Entering FullEnv" << std::endl;
#endif

  m_worldRank = 0;

  m_fullComm = new MpiComm(*this);
  m_fullRank     = 0;
  m_fullCommSize = 1;

#ifndef QUESO_HAS_MPI
  m_fullGroup = 0;
#endif

  // saving old uncaught exception handler, invoking queso_terminate
  old_terminate_handler = std::set_terminate(queso_terminate_handler);

#ifdef QUESO_MEMORY_DEBUGGING
  std::cout << "In FullEnv, finished dealing with MPI initially" << std::endl;
#endif

  // Read options
  // If NULL, we create one
  if (m_optionsObj == NULL) {
    // If there's an input file, we grab the options from there.  Otherwise the
    // defaults are used
    if (m_optionsInputFileName != "") {
#ifndef DISABLE_BOOST_PROGRAM_OPTIONS
      m_allOptionsMap  = new boost::program_options::variables_map();
      m_allOptionsDesc = new boost::program_options::options_description("Allowed options");
#endif  // DISABLE_BOOST_PROGRAM_OPTIONS

      readOptionsInputFile();

      m_input->parse_input_file(m_optionsInputFileName);
    }

    EnvOptionsValues * tempOptions = new EnvOptionsValues(this, prefix);

    // We did this dance because scanOptionsValues is not a const method, but
    // m_optionsObj is a pointer to const
    m_optionsObj = tempOptions;
  }

  // If help option was supplied, print info
  if (m_optionsObj->m_help != "") {
    // We write to std::cout because subDisplayFile() isn't ready yet?
    std::cout << (*m_optionsObj) << std::endl;
  }

  queso_require_equal_to_msg(
      fullComm().NumProc() % m_optionsObj->m_numSubEnvironments, 0,
      "total number of processors in environment must be multiple of the specified number of subEnvironments");

#ifdef QUESO_MEMORY_DEBUGGING
  std::cout << "In FullEnv, finished scanning options" << std::endl;
#endif

  // Only display these messages if the user wants them
  // NOTE: This got moved below the Read Options section
  // because we need the options to be read to know what
  // the verbosity level is.
  if (this->displayVerbosity() > 0) {
    // Display main initial messages
    // 'std::cout' is for: main trace messages + synchronized trace messages + error messages prior to 'exit()' or 'abort()'
    /*int iRC = 0;*/
    /*iRC = */gettimeofday(&m_timevalBegin, NULL);

    QUESO_version_print(std::cout);

    std::cout << "Beginning run at " << ctime(&m_timevalBegin.tv_sec)
              << std::endl;
  }

  m_subId = 0;
  char tmpSubId[16];
  sprintf(tmpSubId,"%u",m_subId);
  m_subIdString = tmpSubId;

  if (m_optionsObj->m_subDisplayAllowAll) {
    m_optionsObj->m_subDisplayAllowedSet.insert((unsigned int) m_subId);
  }

  int fullRanksOfMySubEnvironment = 1;

#ifndef QUESO_HAS_MPI
  m_subGroup = 0;
#endif

  m_subComm = new MpiComm(*this);
  m_subRank     = 0;
  m_subCommSize = 1;

  // Deal with multiple subEnvironments: create the self communicator
  m_selfComm = new MpiComm(*this);

  // Deal with multiple subEnvironments: create the inter0 communicator
  int fullRanksOfInter0 = 0;
#ifndef QUESO_HAS_MPI
  m_inter0Group = 0;
#endif
  m_inter0Comm = new MpiComm(*this);
  m_inter0Rank     = 0;
  m_inter0CommSize = 1;

  if (m_optionsObj->m_subDisplayAllowAll) {
    // This situation has been already taken care of above
  }
  else if (m_optionsObj->m_subDisplayAllowInter0) {
    if (m_inter0Rank >= 0) {
      m_optionsObj->m_subDisplayAllowedSet.insert((unsigned int) m_subId);
    }
  }


  // Open "screen" file
  bool openFile = false;
  if ((m_subRank                                               == 0                                              ) &&
      (m_optionsObj->m_subDisplayFileName                 != UQ_ENV_FILENAME_FOR_NO_OUTPUT_FILE             ) &&
      (m_optionsObj->m_subDisplayAllowedSet.find(m_subId) != m_optionsObj->m_subDisplayAllowedSet.end())) {
    openFile = true;
  }

  if (openFile && m_worldRank == 0) {
    // Verify parent directory exists (for cases when a user
    // specifies a relative path for the desired output file).
    int irtrn = CheckFilePath((m_optionsObj->m_subDisplayFileName+"_sub"+m_subIdString+".txt").c_str());
    queso_require_greater_equal_msg(irtrn, 0, "unable to verify output path");
  }

  // Ensure that rank 0 has created path, if necessary, before other tasks use it
  m_fullComm->Barrier();

  if (openFile) {
    // Always write over an eventual pre-existing file
    m_subDisplayFile = new std::ofstream((m_optionsObj->m_subDisplayFileName+"_sub"+m_subIdString+".txt").c_str(),
                                         std::ofstream::out | std::ofstream::trunc);
    queso_require_msg((m_subDisplayFile && m_subDisplayFile->is_open()), "failed to open sub screen file");

    QUESO_version_print(*m_subDisplayFile);

    *m_subDisplayFile << "Beginning run at " << ctime(&m_timevalBegin.tv_sec)
                      << std::endl;
  }

  // Debug message related to subEnvironments
  if (this->displayVerbosity() >= 2) {
    for (int i = 0; i < m_fullCommSize; ++i) {
      if (i == m_fullRank) {
        //std::cout << "In FullEnvironment::commonConstructor()"
        std::cout << "MPI node of worldRank "             << m_worldRank
                  << " has fullRank "                     << m_fullRank
                  << ", belongs to subEnvironment of id " << m_subId
                  << ", and has subRank "                 << m_subRank
                  << std::endl;

        std::cout << "MPI node of worldRank " << m_worldRank
                  << " belongs to sub communicator with full ranks";
          std::cout << " " << fullRanksOfMySubEnvironment;
  std::cout << "\n";

        if (m_inter0Comm) {
          std::cout << "MPI node of worldRank " << m_worldRank
                    << " also belongs to inter0 communicator with full ranks";
            std::cout << " " << fullRanksOfInter0;
          std::cout << ", and has inter0Rank " << m_inter0Rank;
        }
  std::cout << "\n";

  std::cout << std::endl;
      }
      m_fullComm->Barrier();
    }
  }

  // Deal with seed
  if (m_optionsObj->m_rngType == "gsl") {
    m_rngObject = new RngGsl(m_optionsObj->m_seed,m_worldRank);
    m_basicPdfs = new BasicPdfsGsl(m_worldRank);
  }
  else if (m_optionsObj->m_rngType == "boost") {
    m_rngObject = new RngBoost(m_optionsObj->m_seed,m_worldRank);
    m_basicPdfs = new BasicPdfsBoost(m_worldRank);
  }
  else {
    std::cerr << "In Environment::constructor()"
              << ": rngType = " << m_optionsObj->m_rngType
              << std::endl;
    queso_error_msg("the requested 'rngType' is not supported yet");
  }

  // Leave commonConstructor()
  m_fullComm->Barrier();
  m_fullEnvIsReady = true;

  if ((m_subDisplayFile) && (this->displayVerbosity() >= 5)) {
    *m_subDisplayFile << "Done with initializations at FullEnvironment::commonConstructor()"
                      << std::endl;
  }

  return;
}

void QUESO::FullEnvironment::print ( std::ostream &  os ) const

virtual

Sends the environment options to the stream.

Implements QUESO::BaseEnvironment.

Definition at line 1716 of file Environment.C.

{
  os.flush(); // just to avoid icpc warnings
  return;
}

void QUESO::FullEnvironment::readOptionsInputFile ( )

private

Checks the options input file and reads the options.

Definition at line 1749 of file Environment.C.

References QUESO::BaseEnvironment::m_fullRank, QUESO::BaseEnvironment::m_optionsInputFileName, and queso_error.

Referenced by construct().

{
  std::ifstream* ifs = new std::ifstream(m_optionsInputFileName.c_str());
  if (ifs->is_open()) {
    //ifs->close();
    delete ifs;
  }
  else {
    if (m_fullRank == 0) std::cout << "An invalid input file has been passed to the 'environment' class constructor!"
                                   << ": name of file is '" << m_optionsInputFileName.c_str() << "'"
                                   << std::endl;

    if (m_fullRank == 0) std::cout << "\nThis is a help message of the QUESO library."
                                   << "\nAn application using the QUESO library shall be executed by typing"
                                   << "\n  '<eventual mpi commands and options> <Application> <InputFile>'"
                                   << "\nin the command line."
                                   << "\n"
                                   << std::endl;
    queso_error();
  }

  return;
}

---

The documentation for this class was generated from the following files:

• src/core/inc/Environment.h
• src/core/src/Environment.C
