QUESO::StdScalarCdf< T > Class Template Reference

A class for handling standard CDFs. More...

#include <StdScalarCdf.h>

Inheritance diagram for QUESO::StdScalarCdf< T >:

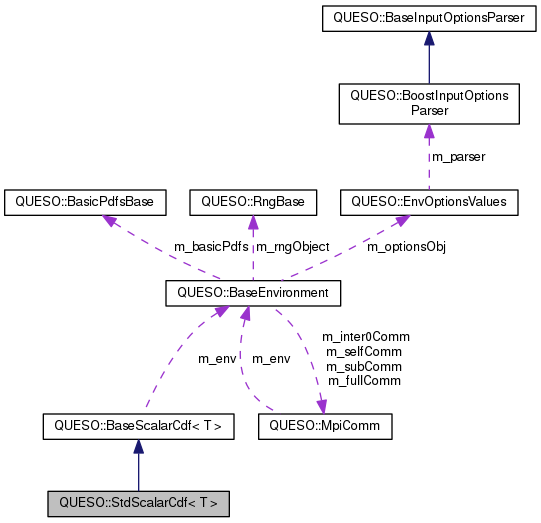

Collaboration diagram for QUESO::StdScalarCdf< T >:

Public Member Functions
Constructor/Destructor methods
	StdScalarCdf (const BaseEnvironment &env, const char *prefix, const std::vector< T > &cdfGrid, const std::vector< double > &cdfValues)
	Default constructor. More...
	~StdScalarCdf ()
	Destructor. More...
Mathematical methods
double	value (T paramValue) const
	Returns the value of the CDF at paramValue. More...
T	inverse (double cdfValue) const
	Returns the position of a given value of CDF. More...
void	getSupport (T &minHorizontal, T &maxHorizontal) const
	Returns the support (image) of the CDF between two horizontal values (domain). More...
I/O methods
void	print (std::ostream &os) const
	Prints the CDF (values of the grid points and of the CDF at such grid points). More...
void	subWriteContents (const std::string &varNamePrefix, const std::string &fileName, const std::string &fileType, const std::set< unsigned int > &allowedSubEnvIds) const
	Writes the CDF of an allowed sub-environment to a file. More...
Public Member Functions inherited from QUESO::BaseScalarCdf< T >
	BaseScalarCdf (const BaseEnvironment &env, const char *prefix)
	Default constructor. More...
virtual	~BaseScalarCdf ()
	Virtual destructor. More...
const BaseEnvironment &	env () const
	Environment. Access to private attribute m_env. More...
const std::string &	prefix () const
	Access to private attribute m_prefix. More...

Protected Attributes
const StdOneDGrid< T >	m_cdfGrid
const std::vector< double >	m_cdfValues
SampledScalarCdf< T > *	m_sampledCdfGrid
Protected Attributes inherited from QUESO::BaseScalarCdf< T >
const BaseEnvironment &	m_env
std::string	m_prefix
T	m_minHorizontal
T	m_maxHorizontal

Detailed Description

template<class T>
class QUESO::StdScalarCdf< T >

A class for handling standard CDFs.

This class implements a standard cumulative distribution function (CDF). Its protected attribute m_sampledCdfGrid is an object of the class SampledScalarCdf<T>, so all members of this class are implemented using the members of SampledScalarCdf<T>.

Definition at line 48 of file StdScalarCdf.h.

Constructor & Destructor Documentation

template<class T >

QUESO::StdScalarCdf< T >::StdScalarCdf	(	const BaseEnvironment &	env,
		const char *	prefix,
		const std::vector< T > &	cdfGrid,
		const std::vector< double > &	cdfValues
	)

Default constructor.

Instantiates an object of the class given a prefix, the environment, the grid points where it will be evaluated and its resulting values.

Definition at line 31 of file StdScalarCdf.C.

References QUESO::BaseEnvironment::displayVerbosity(), QUESO::BaseScalarCdf< T >::env(), QUESO::StdScalarCdf< T >::m_cdfGrid, QUESO::StdScalarCdf< T >::m_cdfValues, QUESO::BaseScalarCdf< T >::m_env, QUESO::BaseScalarCdf< T >::m_prefix, QUESO::StdScalarCdf< T >::m_sampledCdfGrid, QUESO::BaseScalarCdf< T >::prefix(), and QUESO::BaseEnvironment::subDisplayFile().

  :
  BaseScalarCdf<T>(env,((std::string)(prefix)+"").c_str()),
  m_cdfGrid              (env,prefix,cdfGrid),
  m_cdfValues            (cdfValues),
  m_sampledCdfGrid       (NULL)
{
  if ((m_env.subDisplayFile()) && (m_env.displayVerbosity() >= 5)) {
    *m_env.subDisplayFile() << "Entering StdScalarCdf<T>::constructor()"
                            << ": prefix = " << m_prefix
                            << std::endl;
  }

  m_sampledCdfGrid = new SampledScalarCdf<T>(env,prefix,m_cdfGrid,m_cdfValues);

  if ((m_env.subDisplayFile()) && (m_env.displayVerbosity() >= 5)) {
    *m_env.subDisplayFile() << "Leaving StdScalarCdf<T>::constructor()"
                            << ": prefix = " << m_prefix
                            << std::endl;
  }
}

template<class T >

QUESO::StdScalarCdf< T >::~StdScalarCdf

(

)

Destructor.

Definition at line 58 of file StdScalarCdf.C.

{
  delete m_sampledCdfGrid;
}

Member Function Documentation

template<class T >

void QUESO::StdScalarCdf< T >::getSupport ( T &  minHorizontal, T &  maxHorizontal  ) const

virtual

Returns the support (image) of the CDF between two horizontal values (domain).

Implements QUESO::BaseScalarCdf< T >.

Definition at line 79 of file StdScalarCdf.C.

{
  return m_sampledCdfGrid->getSupport(minHorizontal,maxHorizontal);
}

template<class T >

T QUESO::StdScalarCdf< T >::inverse ( double  cdfValue ) const

virtual

Returns the position of a given value of CDF.

Implements QUESO::BaseScalarCdf< T >.

Definition at line 72 of file StdScalarCdf.C.

{
  return m_sampledCdfGrid->inverse(cdfValue);
}

template<class T >

void QUESO::StdScalarCdf< T >::print ( std::ostream &  os ) const

virtual

Prints the CDF (values of the grid points and of the CDF at such grid points).

Implements QUESO::BaseScalarCdf< T >.

Definition at line 86 of file StdScalarCdf.C.

{
  m_sampledCdfGrid->print(os);
  return;
}

template<class T >

void QUESO::StdScalarCdf< T >::subWriteContents ( const std::string &  varNamePrefix, const std::string &  fileName, const std::string &  fileType, const std::set< unsigned int > &  allowedSubEnvIds  ) const

virtual

Writes the CDF of an allowed sub-environment to a file.

It will write the data in Octave/Matlab compatible format.

Reimplemented from QUESO::BaseScalarCdf< T >.

Definition at line 94 of file StdScalarCdf.C.

{
  m_sampledCdfGrid->subWriteContents(varNamePrefix,fileName,fileType,allowedSubEnvIds);
  return;
}

template<class T >

double QUESO::StdScalarCdf< T >::value ( T  paramValue ) const

virtual

Returns the value of the CDF at paramValue.

Implements QUESO::BaseScalarCdf< T >.

Definition at line 65 of file StdScalarCdf.C.

{
  return m_sampledCdfGrid->value(paramValue);
}

Member Data Documentation

template<class T >

const StdOneDGrid<T> QUESO::StdScalarCdf< T >::m_cdfGrid

protected

Definition at line 93 of file StdScalarCdf.h.

Referenced by QUESO::StdScalarCdf< T >::StdScalarCdf().

template<class T >

const std::vector<double> QUESO::StdScalarCdf< T >::m_cdfValues

protected

Definition at line 94 of file StdScalarCdf.h.

Referenced by QUESO::StdScalarCdf< T >::StdScalarCdf().

template<class T >

SampledScalarCdf<T>* QUESO::StdScalarCdf< T >::m_sampledCdfGrid

protected

Definition at line 95 of file StdScalarCdf.h.

Referenced by QUESO::StdScalarCdf< T >::StdScalarCdf().

---

The documentation for this class was generated from the following files:

• src/stats/inc/StdScalarCdf.h
• src/stats/src/StdScalarCdf.C
